LDX-028A TCT Saw Blade Double Grinding Head Side Full CNC Grinding Machine
Gear grinding machine full CNC production standard:
1,The full CNC production standard of gear grinding machine is a standard specification for the production of gear grinding machine under full CNC environment
2,It is designed to ensure the production process of the gear grinding machine is efficient, stable and safe, and improve product quality and production efficiency. This paper will introduce the formulation basis, application scope, key elements and implementation suggestions of the CNC production standard of gear grinding machine.
3,The full CNC production standard applies to all grinding machines using full CNC system, including worm grinding wheel grinding machine, straight tooth grinding machine, bevel gear grinding machine, etc.
4,For other types of CNC gear grinding machines, appropriate adjustments can also be made by referring to this standard.
| Technical parameters: |
| Saw web machining diameter range:￠100-￠800mm |
| Saw web bore diameter: 12-220mm |
| Thickness of saw web (steel plate):1-7mm |
| Tooth pitch: 5-80mm |
| Front inclination angle, inclination angle: 5°-15° |
| Radial angle: 3°-15° |
| Operating speed: 18 teeth/min |
| Feeding stroke: 1-28mm (stepless variable speed) |
| Grinding wheel dimensions: 80*100*32mm |
| Grinding speed: 26m/s |
| Coolant pump flux: 501/min |
| Coolant cylinder volume: 90L |
| Total power: 4.3KW |
| Voltage: Three-phase 380v |
| Weight: 1,100KG |
| Outer diameter dimensions: 1.75*1.4*2.0mm |
| Technical characteristics: |

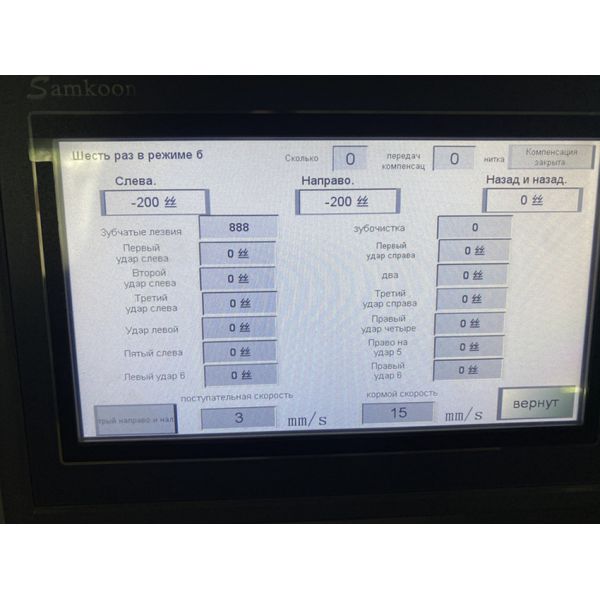

An intuitive and simple whole Chinese operation interface is matched with a large-sized touch screen, so the equipment is easier to operate, and all preset procedures or self-compiled procedures are more convenient to call; the servo tool setting device features accurate positioning, so the product grinding accuracy is greatly ensured. Due to the adoption of high-quality and high-accuracy castings and machined parts, the service life of the equipment is greatly prolonged, and the equipment is simple and easy to operate and maintain; one person can operate many pieces of equipment at the same time, so the production efficiency is greatly improved, and the cost is reduced.
|
